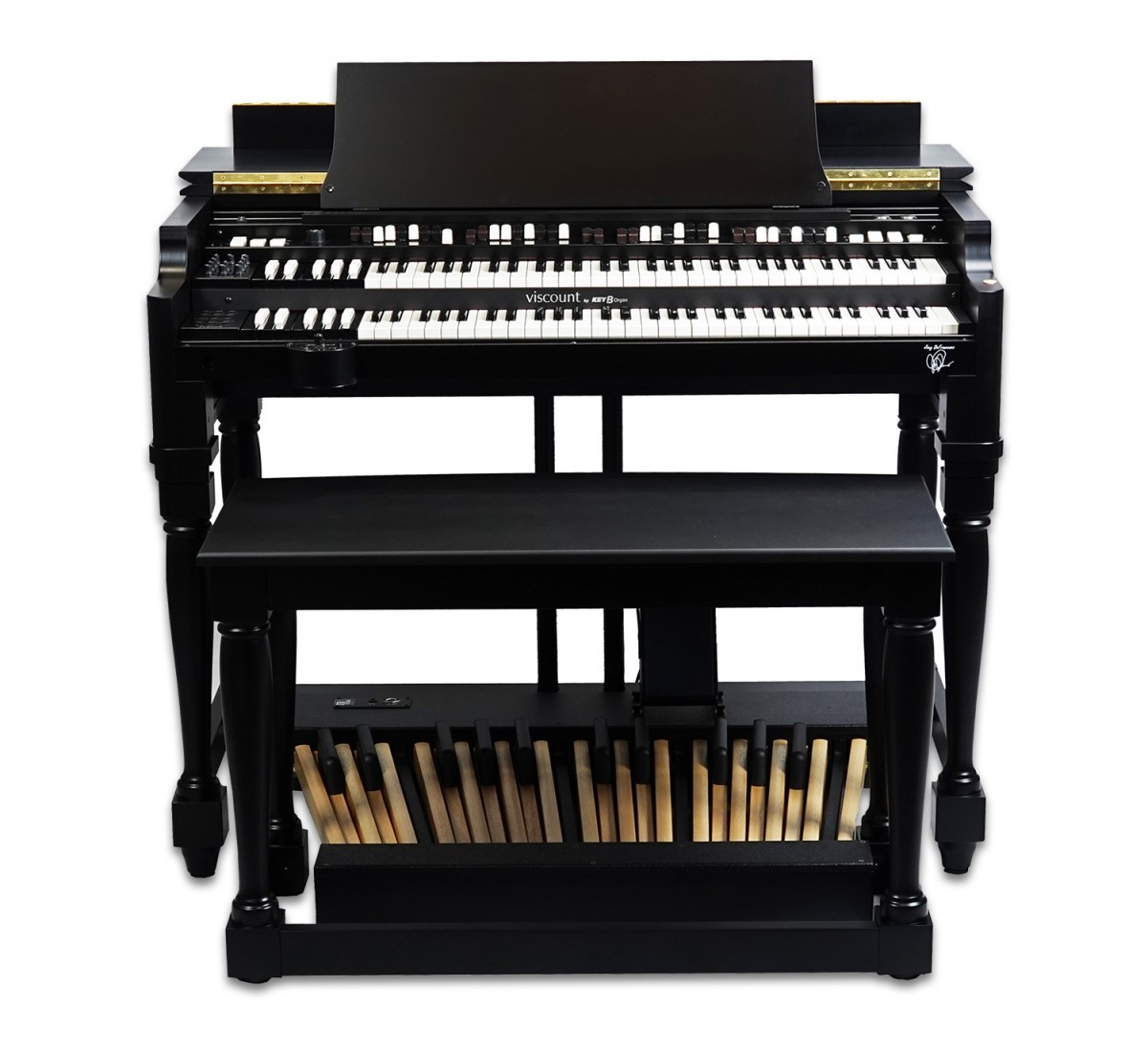

Viscount Legend Black Setup con panca e supporto

• Tastiera Tastiera Upper - 73 note (61 + 12 tasti invertiti) tastiera waterfall Tastiera Lower - 73 note (61 + 12 tasti invertiti) tastiera waterfall

GENERATORE SONORO

• Tecnologia TMT (Tonewheel Modeling Technology)
• Crosstalk Crosstalk specifico per ongi modello di tonewheel
• Keyclick Rivoluzionario con progetto alla stato dell'arte
• Traspositore -6 +5 semitoni
• Accordatura +/- ¼ tono
• Tonewheel model '30, '50, '70, Alt. 1, Alt. 2, Alt. 3
• String Bass On/Off, Decay Control
• Harmonic Percussion On/Off, Volume Soft/Normal, Decay, Fast/Slow, Harmonic Percurssion 2nd / 3rd Percussion Level and Percussion Decay Controls

EFFETTI

• Effetti Riverberanti Nuovi riverberi modellati Spring e Hall (con con piazzamento riverbero pre/post Rotary)
• Overdrive Classic, Rock
• Effetti Modulanti Vibrato/Chorus: Upper On/Off, Lower & Pedal On/Off, Select: V-1, V-2, V-3, C-1, C-2, C-3
• Rotary simulation type Classic, Rock with Direct option, Memphis mode

INTERFACCIA

• Controlli Upper Front Panel: Volume; Reverb; Drive; Keyclick; Tuning; Crosstalk; Tone Controls; Pedals Sustain; Percussion decay; Percussion Volume.
• Lower Front Panel: Reverb; Drive; Tonewheel Model; Transpose; Rotary; Hold (Int/Ext); Pedals direct; pedals to Lower.
• Half Moon: Rotary Speed Control.
• Drawbars - Upper 2 insiemi di 9 drawbars: 16' - 5 (1/3)' - 8' - 4' - 2 (2/3)' - 2' - 1 (3/5)' - 1 (1/3)' - 1'
• Drawbars - Lower 2 insiemi di 9 drawbars: 16' - 5 (1/3)' - 8' - 4' - 2 (2/3)' - 2' - 1 (3/5)' - 1 (1/3)' - 1'
• Drawbars - Upper Preset Upper Drawbar Set A or Set B + 9 presets and Upper MIDI Local on/off [reverse colored Preset keys]
• Drawbars - Lower Preset Lower Drawbar Set A or Set B + 9 presets and Lower MIDI Local on/off [reverse colored Preset keys]
• Drawbars - Pedals 2 drawbars: 16' & 8'
• Connessioni CABINET CONNECTION LOCATION
• > = outside
• < = inside
• <&> = inside and outside

OUTPUT:

• <&> L & R Line Out 6,35 mm jacks, balanced
• > Pedals Direct Out 6,35 mm jack, balanced (without C/V and Rotary emulation)
• <&> 11' pin Rotary Speaker (doubled outside)
• > 2 Stereo Headphone 6,35 mm jacks
• < TRS Digital Expression Pedal 6,35 mm jack
• < Rotary Simulation Footswitch, 6,35 mm jack
• <&> USB HOST type A, power charger only
• < FX send

INPUT:

• < Audio input mono with adjusting gain pot
• < FX return
• <&> USB TO HOST type B, for firmware update
• Midi In, Out, Thru < Out 1, Out 2, In, Thru, Pedalboard In

ALTRO

• Colori / Rifiniture Nero satinato
• Dimensioni (LxHxP) 126,6 x 61,5 x 77,7 cm / 49.8' x 14.1' x 30.6'
• Peso 57 Kg/125,6 lbs (console); 15 Kg / 33 lbs (stand)
