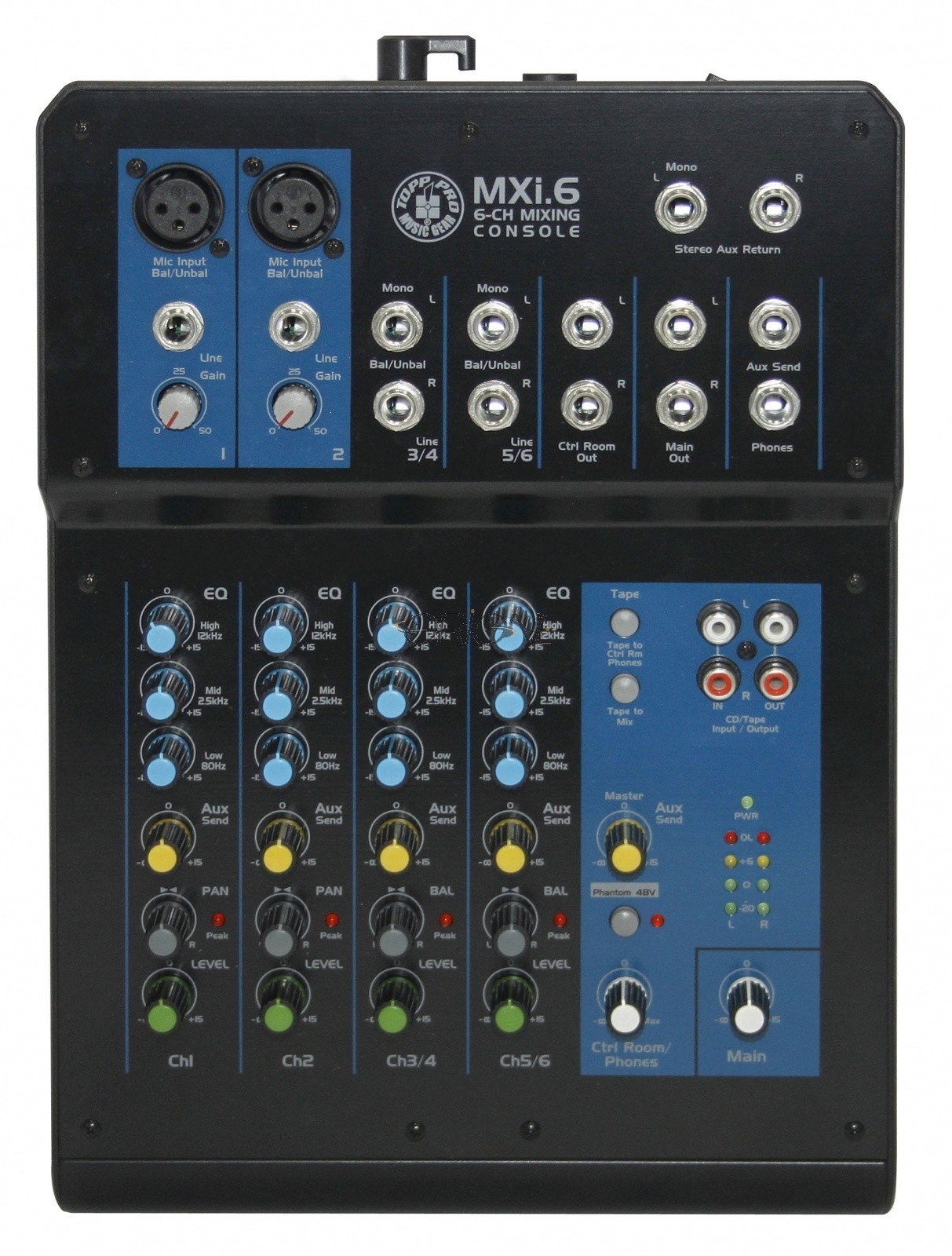

Topp Pro MIXER MXI.6 FX

Input Channels

Mono input channels

Microphone input electronically balanced, discrete input configuration

Frequency response 10 Hz to 55 kHz, +/ 3 dB

Distortion (THD & N) 0.005% at +4 dBu, 1 kHz

Gain range 0 dB to 60 dB (MIC)

SNR (Signal to Noise Ratio) 115 dB

Line input electronically balanced

Frequency response 10 Hz to 55 kHz, +/ 3 dB

Distortion (THD & N) 0.005% at +4 dBu, 1 kHz

Stereo input channels

Line input Balanced

Frequency response 10 Hz to 55 kHz, +/- 3 dB

Distortion (THD & N) 0.005% at +4 dBu, 1 kHz

Impedance

Microphone Input 1.4 k Ohms

All Other Input 10k Ohms or Greater

Tape Out 1k Ohms

All Other Outputs 120 Ohms

Equalization

Hi shelving +/- 15 dB @12 kHz

Mid bell +/- 15 dB @ 2.5 kHz

Low shelving +/- 15 dB @ 80 Hz

DSP Section

A/D and D/A converters 24-bit

Main Mix Section

Noise (Bus Noise) Fader 0dB,Channels muted:-100dBr (ref:+4dBu)

Fader 0dB, All Input Channels Assigned and Set To UNITY Gain:-90dBr(ref:+4dBu)

Max Output +22 dBu Unbalanced,1/4' Jacks

AUX Sends max out +22 dBu

AUX Returns gain range 8 to +15 dB

Power Supply(AC/DC Adaptor)

Main voltage USA / Canada 100-120 V~, 60 Hz

Fuse Europe 210-230 V~, 50 Hz, U.K. / Australia 240 V~, 50 Hz

Power Consumption 15 Watts

Physical

Dimension (W D H) 185 mm x 230 mm x 35/55 mm

Net weight 0,7 Kg
